What Portacabin Size Do You Need?

Choosing the right portacabin size is one of the first decisions to make when planning a temporary office, construction facility, accommodation unit, security cabin, classroom, clinic or other modular space in the UAE. A cabin that is too small can quickly become uncomfortable and difficult to use, while choosing a much larger unit than necessary can increase transportation, installation and fit-out requirements.

There is no single portacabin size that works for every project. UAE suppliers currently offer a wide range of dimensions, from compact security cabins to larger modular units, while custom configurations can be designed around a project’s requirements.

The best way to select a size is to start with how the cabin will actually be used rather than simply choosing the largest or cheapest available option.

Start With the Purpose of the Portacabin

The intended use should be the first consideration. A security cabin at a site entrance requires very different space from a multi-person site office or accommodation unit.

Small cabins can work well for security personnel, gatehouses, reception points and other applications where only limited indoor space is required. A medium-sized unit may be more suitable for a site office, meeting room, welfare facility or first-aid room. Larger units can provide space for offices, accommodation, dining areas and other facilities.

Current UAE market listings show examples ranging from approximately 2 m × 2 m compact cabins to 3 m × 12 m and larger configurations. These should be treated as market examples rather than fixed industry standards because manufacturers may use different external dimensions, wall systems and layouts.

How Many People Will Use the Cabin?

Occupancy is one of the most practical ways to determine the required floor area. A cabin designed for one or two people does not need the same footprint as an office occupied by ten people.

For example, a compact cabin may be sufficient for a security post where the main requirements are a desk, chair, electrical points and air conditioning. A 3 m × 6 m configuration is commonly marketed in the UAE for site offices and similar general-purpose applications. Larger 3 m × 9 m and 3 m × 12 m units can provide more flexibility for offices, meetings, dining areas or accommodation.

However, headcount alone should not determine the size. You also need to consider desks, chairs, cabinets, equipment, walkways and access to doors and services. The actual usable space can be smaller than the advertised external footprint because of wall panels, insulation and internal partitions.

Common Portacabin Sizes and Their Uses

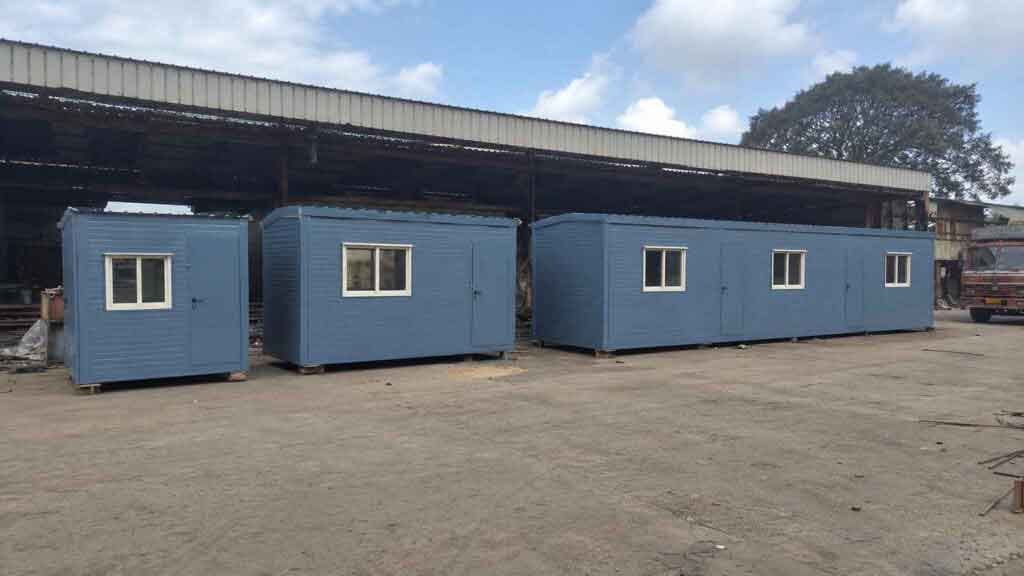

A smaller unit around 2 m × 2 m or 2.4 m × 3 m can be considered for applications such as security points, guard rooms and compact site facilities.

A unit around 3 m × 4 m can provide more practical space for a small office, reception area or welfare room.

The 3 m × 6 m configuration is widely offered for site offices, meeting rooms and general project facilities. It provides enough space for a practical office layout without requiring the footprint of a much larger modular building.

For projects requiring more floor area, 3 m × 9 m and 3 m × 12 m units are also available in the UAE market. These larger configurations can be adapted for offices, accommodation, dining facilities and other uses depending on the internal design.

These dimensions are useful starting points, but buyers should always confirm the manufacturer’s exact external and internal measurements before ordering.

Think About the Layout, Not Just the Size

Two portacabins with the same external dimensions can have completely different levels of usability.

For an office, the layout may need workstations, a manager’s area, storage and a small meeting space. For accommodation, the same footprint may need beds, wardrobes, circulation space and sanitary facilities. A clinic may require a reception area, consultation room, treatment area and storage.

This is why it is useful to prepare a simple floor plan before purchasing or renting. Decide where people will sit, where equipment will be installed and how occupants will move through the space.

Custom modular construction also allows multiple units to be connected to create larger facilities. Modular buildings can be configured and combined according to project requirements rather than being limited to one standalone cabin.

Remember the Difference Between External and Usable Area

One common mistake is to look only at the advertised dimensions.

For example, a cabin described as 3 m × 6 m has an external footprint of approximately 18 square metres, but the usable internal floor area will be lower. Wall thickness, insulation, partitions and internal finishes all take up space.

This becomes particularly important when you need to fit several desks, beds, cabinets or pieces of equipment into the cabin. Ask the supplier for the internal usable dimensions, not just the external dimensions, before making your decision.

Consider UAE Climate and Building Requirements

Size is only one part of selecting a suitable portacabin for a UAE project. The specification also needs to suit the intended use and local requirements.

Dubai Municipality’s Building Code establishes minimum requirements related to health, safety, welfare, convenience and building design, and provides resources covering areas such as insulation and air-conditioning schedules.

For a regularly occupied cabin, buyers should therefore discuss insulation, ventilation, air conditioning, electrical requirements, fire safety and sanitary facilities with the supplier. The appropriate specification can vary according to the application and project location.

Do Not Forget Delivery and Site Access

A cabin may fit perfectly on your site plan but still be difficult to deliver.

Before selecting a large or custom unit, check the access route for delivery vehicles and determine whether unloading or crane operations will be required. Modular construction involves transportation of completed modules, so module dimensions can be affected by road restrictions, route conditions, lifting requirements and transportation costs.

You should check the available space for the cabin itself as well as clearance around it. Consider access for installation, maintenance, emergency movement, air-conditioning equipment and utility connections.

This is particularly important for restricted construction sites, industrial facilities and locations where large delivery vehicles have limited access.

Should You Choose One Large Cabin or Multiple Units?

For larger projects, buying or renting one very large cabin is not always the most practical solution.

Several smaller modules can sometimes provide greater flexibility. For example, separate units can be allocated to offices, accommodation, toilets, storage or dining. Modules can also be connected or arranged together to create a larger temporary facility.

The right approach depends on the site, transport conditions, required layout, installation method and future expansion plans. Modular construction requires early coordination between design, manufacturing, transportation and site installation, so these factors should be considered before finalising the size.

What Size Portacabin Should You Choose?

A practical starting point is to match the cabin size to the number of occupants and the function of the space.

For a small security or guard facility, a compact cabin may be sufficient. For a small site office, a configuration around 3 m × 6 m is commonly available in the UAE market. If you need additional office, accommodation or dining space, longer configurations such as 3 m × 9 m or 3 m × 12 m may provide more flexibility.

For larger teams or facilities with several functions, consider connecting multiple units or using a custom modular configuration rather than simply selecting the biggest standard cabin.

The final decision should take into account occupancy, furniture, equipment, internal circulation, services, site dimensions, delivery access and applicable project requirements.

Questions to Ask Before Ordering

Before purchasing or renting a portacabin, ask the supplier to confirm the external dimensions, internal usable area, wall and insulation thickness, floor plan, electrical specification, air-conditioning arrangement and available customisation options.

Also confirm how the unit will reach the site. Ask about transportation, unloading, crane requirements, installation, utility connections and any site preparation needed.

Most importantly, do not select a cabin based on dimensions alone. The best portacabin is the one that provides enough usable space for its intended purpose while remaining practical to transport, install and operate.

Final Thoughts

Choosing the right portacabin size in the UAE is a balance between space, functionality and practicality. A compact unit may be ideal for a security point, while a 3 m × 6 m cabin can provide a useful starting point for a small site office. Larger configurations can support accommodation, dining, offices and other facilities, while multiple connected units can create more extensive temporary spaces.

Before placing an order, review the actual internal dimensions, planned occupancy, furniture layout, technical requirements and delivery route. Taking these factors into account from the beginning can help you avoid paying for unnecessary space or discovering that the selected cabin does not provide enough room for your project.
